Atari 800XLF Schematic

Post by pancio »

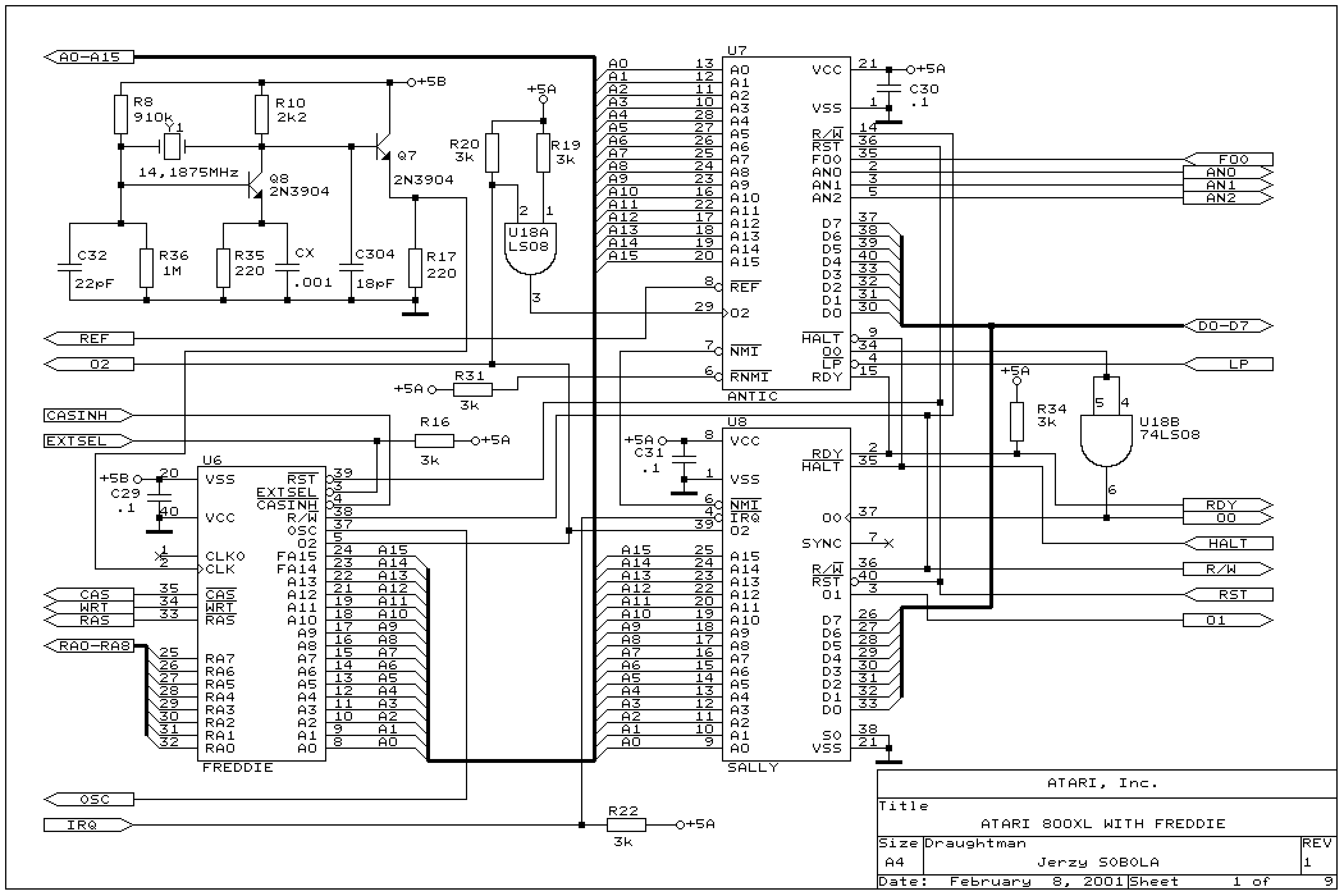

The Atari 800XLF Schematics.
Author: Jerzy Sobola
Attachments
ATARI800XLF-SCHEMATIC.PDF
(1.06 MiB) Downloaded 11231 times
