CPU, ANTIC, GTIA, POKEY, PIA pinouts and overview.

Post by pancio »

6502C "Sally" - C014806C-29
6502C "Sally" - C014806C-29
ANTIC - Alpha-Numeric Television Interface Controller. C021697 (NTSC), C021698 (PAL/SECAM)
ANTIC - Alpha-Numeric Television Interface Controller. C021697 (NTSC), C021698 (PAL/SECAM)
GTIA - Graphic Television Interface Adaptor. C014805 (NTSC) / C014889 (PAL)
GTIA - Graphic Television Interface Adaptor. C014805 (NTSC) / C014889 (PAL)

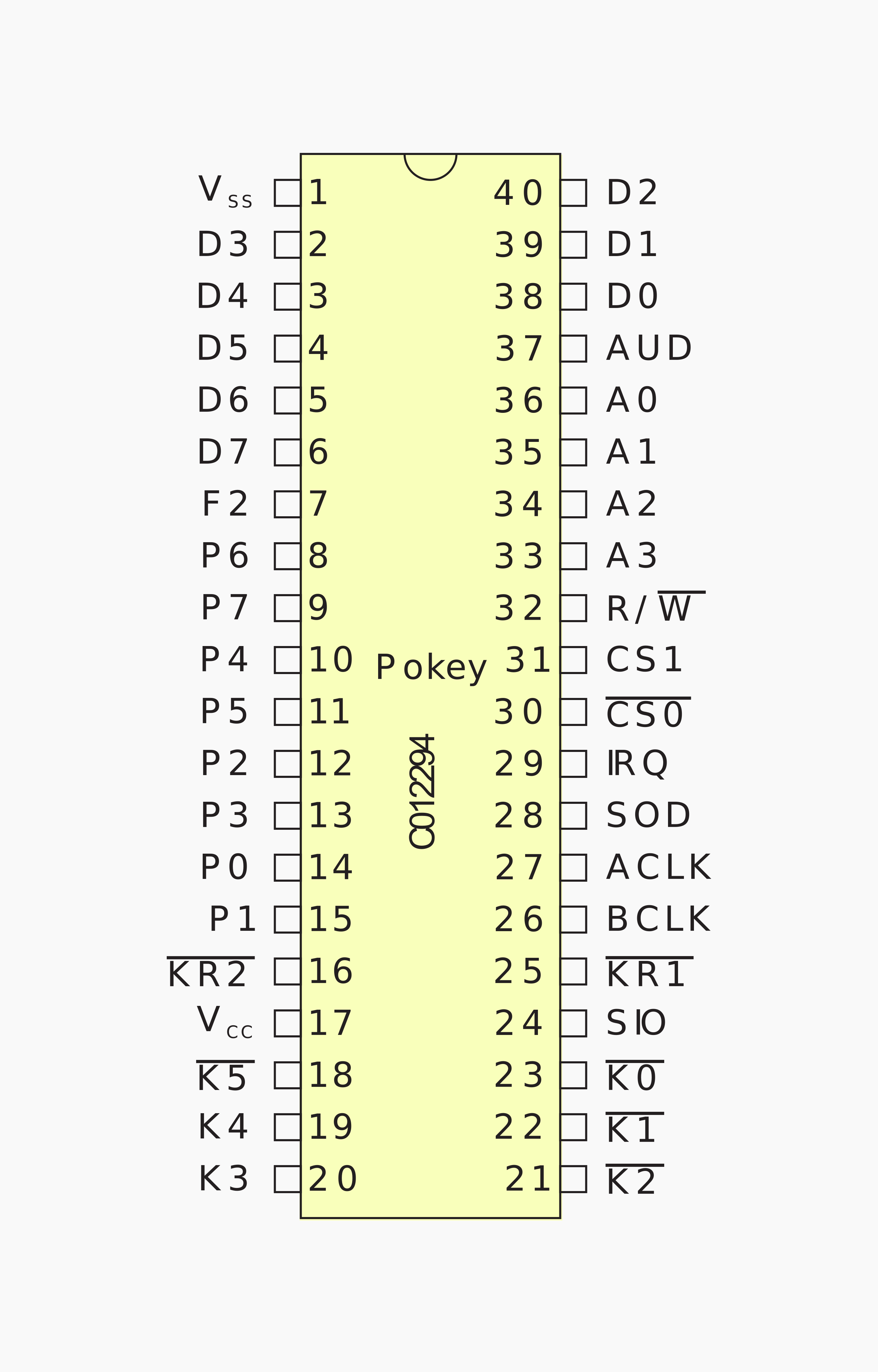

POKEY - POtentiometer and KEYboard chip. CO12294
POKEY - POtentiometer and KEYboard chip. CO12294
PIA - 6520 - Peripheral Interface Adapter
PIA - 6520 - Peripheral Interface Adapter
Attachments
Atari 8 bit scalaki.pdf
Atari 8 bit - układy scalone (polish)
(103.27 KiB) Downloaded 6974 times
all_atari_main_chips.svg.zip
(14.21 KiB) Downloaded 6958 times
