Because of ABBUC Hardware Competition schematics and board will be available of the end of October
The first project which is using VIAtari was made...
I'm glad to present the first GLCD 162x64 connected to Atari:

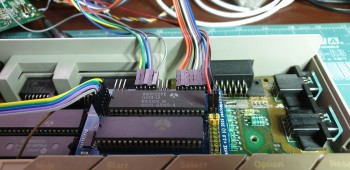

In order to connect GLCD I used both parallel ports - PORTB is a data bus and PORTA is for control signals. Actually I used only 5 signals, so rest may be use for other stuff.
Detail regarding wiring you may find in attached software.
In this point I need to say thanks to @mono user from http://atari.org.pl which wrote very good PLOT procedure (topic: http://www.atari.org.pl/forum/viewtopic.php?id=16152).
Pseudo"white noise" and fill test:
Plot test: (point by point into memory)
The last 2 tests are making into Atari memory and result is sending as whole frame to CLCD. If you are interested in how it's work, please analyse software...
